1700kg CE Mini Crawler Excavator Hydraulic Small Excavation Machine 3 Cylinder

Brand Name : Hightop

Model Number : HT17-1

Certification : CE，EPA，ISO，TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T, D/A, D/P, L/C

Supply Ability : 100 set per month

Delivery Time : 5-14 work days

Packaging Details : Wooden case

Product Name : Mini Crawler Excavator

Model : HT17-1

Engine Brand : Laidong

Operating Weight : 1700kg

Bore stroke : 3 cylinder, water cool

Overall dimension( LxWxH) : 2550x1300x2200 mm

Contact Now

1700kg CE Mini Crawler Excavator Cheap Price Hydraulic Crawler Digger

HT17 Mini Crawler Excavator Description:

Euro 5, EPA, CE,ISO certificate

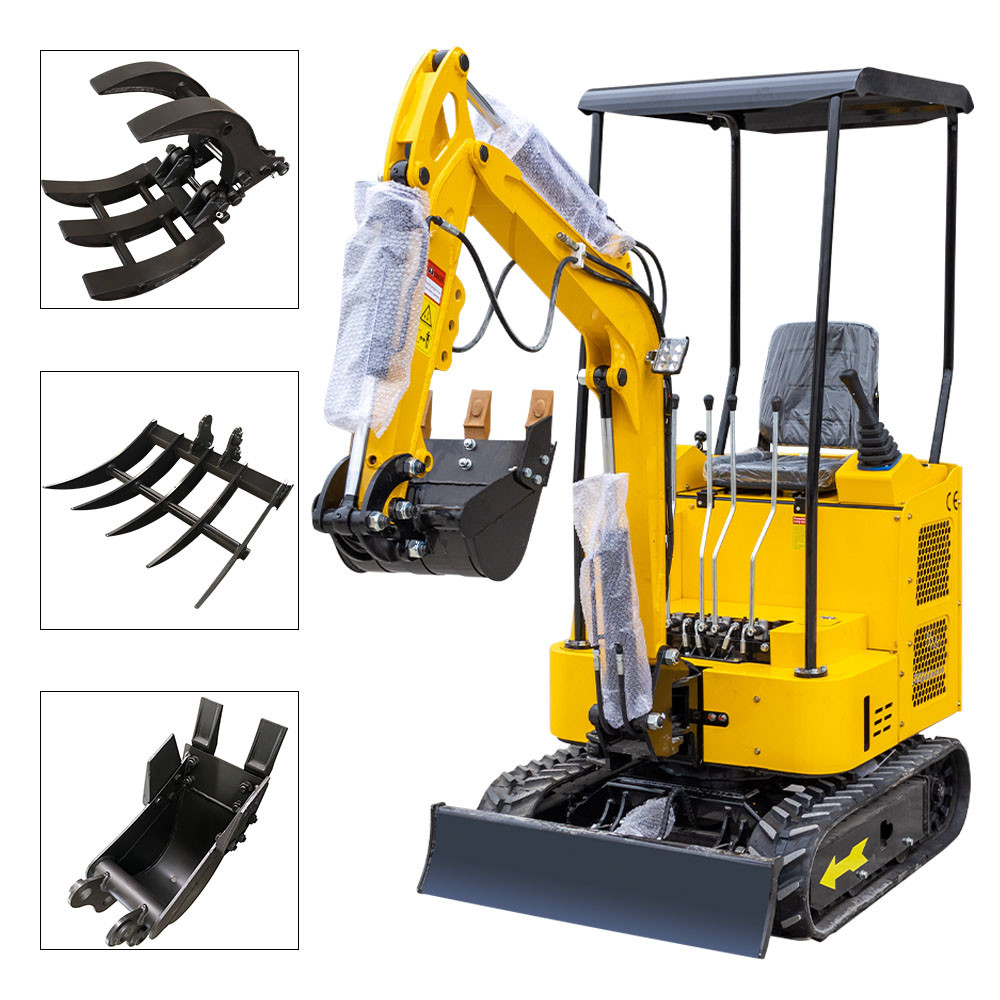

The HT17 mini Crawler excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions.

HT17 Mini Crawler Excavator Features:

1. Hydraulic pump is easy to maintain, long life
2. The retractable undercarriage lets you access and work in the tightest areas.
3. Rubber track no damage to cement, tile floor.
4. Dig-to-blade and dozer float features allow for easy clean up.

Mini Crawler Excavator Technical parameters:

Model HT17
Operation Weight 1700kg
Digging bucket capacity 0.03CBM
Engine Laidong
Bore stroke 3 cylinder, water cool
Rated power 18.1 kw/2200r/min
Travel speed 2.5km/h
Ground Pressure 38 kpa
MAIN DEMENSIONS
Overall dimension( LxWxH) 2550x1300x2200 mm
Total length of track 1300mm
Track Gauge 950 mm
Track Width 180 mm
Track Length(on ground) 1300 mm
OPERATING RANGE
Max. Digging depth 1800 mm
Max. Digging height 2740 mm
Max. Dumping height 1750mm
Max.Digging Radius 2400 mm
Slewing Angle 360°
Main Pump Triple Pump
Main Pressure 18Mpa
Max.Rpm of the pump 2500 r/min
Pump Displacement 18ml/r

Applications:

HT17 mini excavator is widely used in works, such as small projects, gardens, farmland, municipal works, vegetable greenhouse. It is with compact design, and with low oil consumption,and easy to maintain.

HT17 Mini Crawler Excavator Show Details:

1700kg CE Mini Crawler Excavator Hydraulic Small Excavation Machine 3 Cylinder1700kg CE Mini Crawler Excavator Hydraulic Small Excavation Machine 3 Cylinder

1700kg CE Mini Crawler Excavator Hydraulic Small Excavation Machine 3 Cylinder
