Municipal Works 1.8 Ton Mini Excavator Swing Boom Small Hydraulic Excavator HT18

Name: Municipal Works 18 Ton Mini Excavator Swing Boom Small Hydraulic Excavator HT18
Brand: Hightop
Price: 1 USD

Wholesale Municipal Works 1.8 Ton Mini Excavator Swing Boom Small Hydraulic Excavator HT18 from china suppliers

Brand Name : Hightop

Model Number : HT18-2

Certification : CE，EPA，ISO，TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T, D/A, D/P, L/C

Supply Ability : 100 set per month

Delivery Time : 5-14 work days

Packaging Details : Wooden case

Product Name : Mini Hydraulic Excavator

Model : HT8-2

Engine Brand : Kubota D722

Operating Weight : 1800kg

Power /Rotation speed : 10.2kw

Bucket Capacity : 0.06

Contact Now

1800kg Hydraulic Pilot Mini Excavator HT18 Swing Boom Micro Digger

HT18-2 Hightop Mini Hydraulic Excavator Description:

1-China laidong 3TE25 type engine , 18.1kw, stage III
2-Swing boom
4-EATON brand slewing motor
5-EATON brand driving motor
6-Hydraulic pilot servo operation system
7-Rubber track :230mm
8-With broken pipeline system
9- Bucket capacity: 0.06m³

HT18-2 Mini Hydraulic Excavator Features:

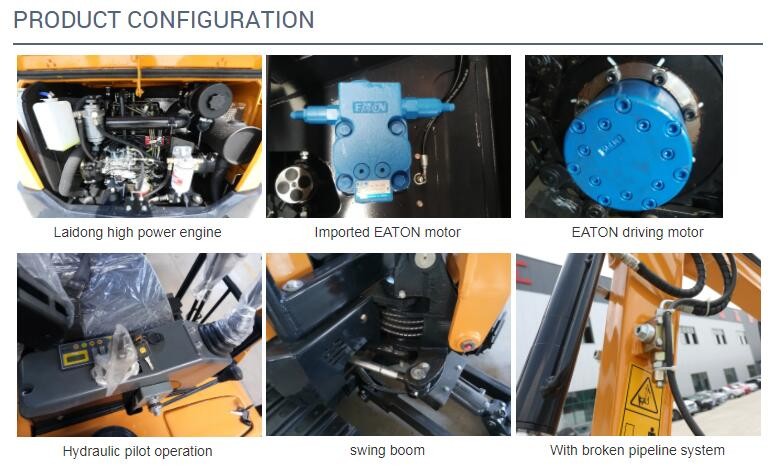

PRODUCT CONFIGURATION:
Laidong high power engine
Imported EATON motor
EATON driving motor
Hydraulic pilot operation
swing boom
With broken pipeline system

Optional other configurations:
can be installed with closed cabin,fan and heater system
can be installed with air conditioning
can be installed with telescopic track,high-low speed

Mini Hydraulic Excavator Technical parameters:

ENGINE
Emission Standard	Tier 3/ Stage III
Make	LAIDONG
Model	3TE25
Power /Rotation speed	18.4kw(25HP)@2350rpm
Number of cylinder	3
Optional Engine	KUBOTA D1105 (EPA Engine)
TRACK SYSTEM
Maximum Travel speed	3.5km/h
Width of track shoe(Rubber & steel track)	230mm
Number of track shoe per side(Steel track only)	38 pcs
Number of upper roller/ bottom roller(per side)	0/4
PERFORMANCE PARAMETER
Standard bucket capacity	0.06m³
Swing speed	10~12 rpm
Max. Grade ability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Hydraulic system pressure	18Mpa
Operating weight	2000kg
MACHINE SIZE
Overall dimension (LWH)	3865mm1050mm2270mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
WORKING RANGE
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1725mm
Max. Digging radius	3860mm
Min .swing radius	1720mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	275mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Applications:

HT18-2 Mini Hydraulic Excavator can be installed with hydraulic quick hitch,narrow bucket,hammer,
auger,tilt bucket,ripper,rake,rotary grapple,tree shears and lawn mower.
Let you only need to buy an excavator to do all kinds of work.

HT18-2 Mini Hydraulic Excavator Show Details:

Municipal Works 1.8 Ton Mini Excavator Swing Boom Small Hydraulic Excavator HT18
