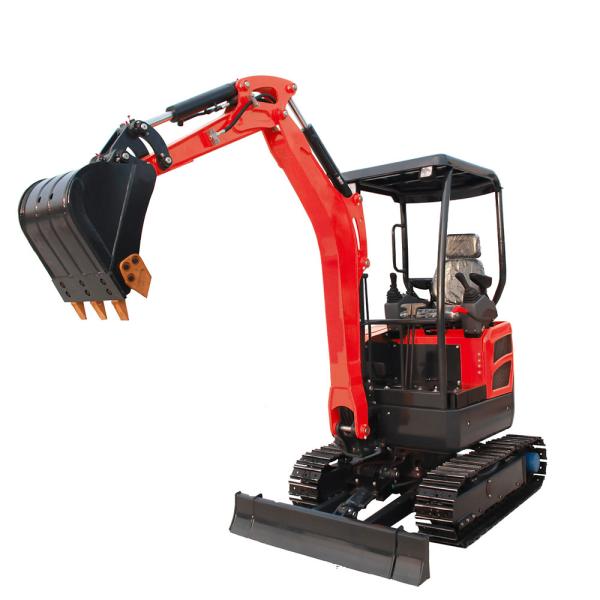

Telescopic Track Frame Rubber Track Mini Excavator 2000kg Red Color

Brand Name : Hightop

Model Number : HT20-2

Certification : CE，EPA，ISO，TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T, D/A, D/P, L/C

Supply Ability : 100 set per month

Delivery Time : 5-14 work days

Packaging Details : Wooden case

Product Name : Mini Hydraulic Excavator

Model : HT20-2

Engine Brand : KUBOTA

Operating Weight : 2000kg

Power /Rotation speed : 14.1kw(20HP)2000rpm

Bucket Capacity : 0.07m³

Contact Now

2T Japan Engine Hightop Mini Excavator Four Legged Shed Mini Digger

HT20-2 Mini Hydraulic Excavator Description:

HT20-2 mini excavator is a compact excavator ,which matched Japanese import brand , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted international brand main pump and valves and driving motor and slewing motor, hydraulic pilot servo operation system.

HT20-2 Mini Hydraulic Excavator Features:

1. Open cabin(Canopy)
2. Hydraulic pilot servo operation system
3. Rubber track :230mm
4. With broken pipeline system
5. Bucket capacity: 0.07m³
6. Telescopic track frame
7. Japanese import brand engine , 14.1kw, Euro 5/EPA

Mini Hydraulic Excavator Technical parameters:

Machine Size
Overall dimension (L*W*H) 3555mm*1300mm*2290mm
Axle base(Track length on ground) 1230mm
Track gauge 760mm
Min.Ground clearance 150mm
Swing radius at tail 650mm
Track System
Maximum Travel speed 4km/h
Width of track shoe 230mm
Number of track shoe per side 38pcs
Number of upper roller per side 1
Number of bottom roller per side 3
Performance Parameter
Standard bucket capacity 0.07m³
Swing speed 9rpm
Max. Grade ability 35°
Max. Bucket digging force 18KN
Max. Arm digging force 11KN
Hydraulic system pressure 21.5Mpa
Machine weight 2000kg
Engine
Emission Standard Euro 5/EPA
Engine Brand Kubota
Model D1105
Power/Rotation speed 14.1kw(20HP) 2000rpm
Number of cylinder 3
Working Range
Max. Digging height 3700mm
Max. Dumping height 2440mm
Max. Digging depth 2400mm
Max. Vertical digging depth 2025mm
Max. Digging radius 4040mm
Min .swing radius 1610mm
Max. Lifting height of blade 240mm
Max. Cutting depth of blade 270mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°

Applications:

Multi-function: In addition to digging, loading and unloading materials, small excavators can also be used for operations under special conditions, such as changing other work tools: install augers for drilling and install grippers for wood grabbing, Installation is used to loosen the ground, install breakers, augers, grippers, rakes, rippers, narrow buckets, grab buckets, flat buckets, trailers, etc., to adapt to other accessories for different construction occasions.

HT20-2 Mini Hydraulic Excavator Show Details:

Telescopic Track Frame Rubber Track Mini Excavator 2000kg Red ColorTelescopic Track Frame Rubber Track Mini Excavator 2000kg Red Color
